IAI1126 Galaxy & Gulfstream G200

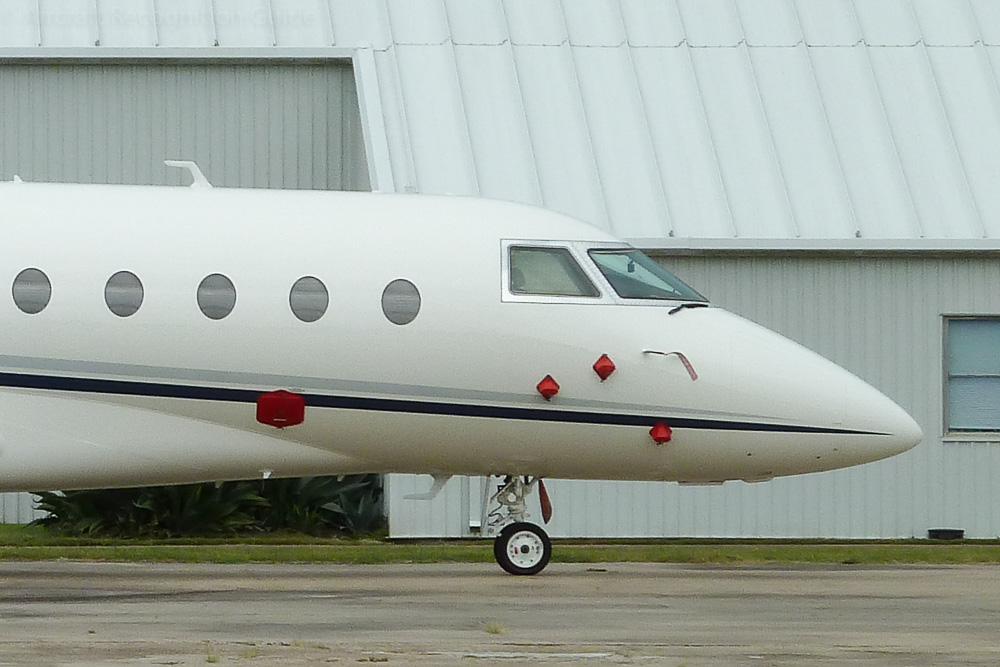

While loosely based on the Astra SPX, the IAI1126 Galaxy is a significantly different aircraft. It has the same basic configuration but with strengthened Astra wings, a much wider fuselage, more and oval cabin windows, an inlet for the air conditioning in the dorsal fin, a short landing gear and long fairings for the thrust reversers. Especially the short nose gear is a clear recognition point, which it only shares with the T-tailed Gulfstream G280.
After inclusion in the Gulfstream product line, the new marketing name and official designation of the Galaxy became G200.
A full view of Gulfstream G200.
Similar aircraft
Some airplanes look so similar to the IAI1126/G200 that you may confuse them. Below you can read how to distinguish them.

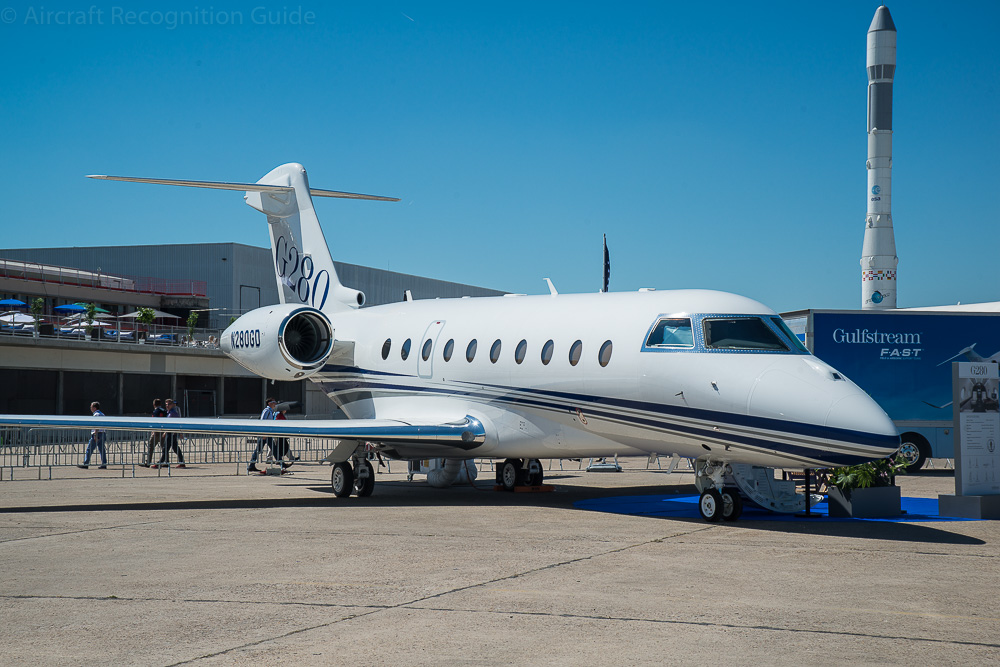

Differences IAI1126/G200 & G280
Basically the Gulfstream G280 is nothing more than a Gulfstream G200 with a T-tail. While that should be enough for easy identification, without looking at the tail you can easily mix them up.

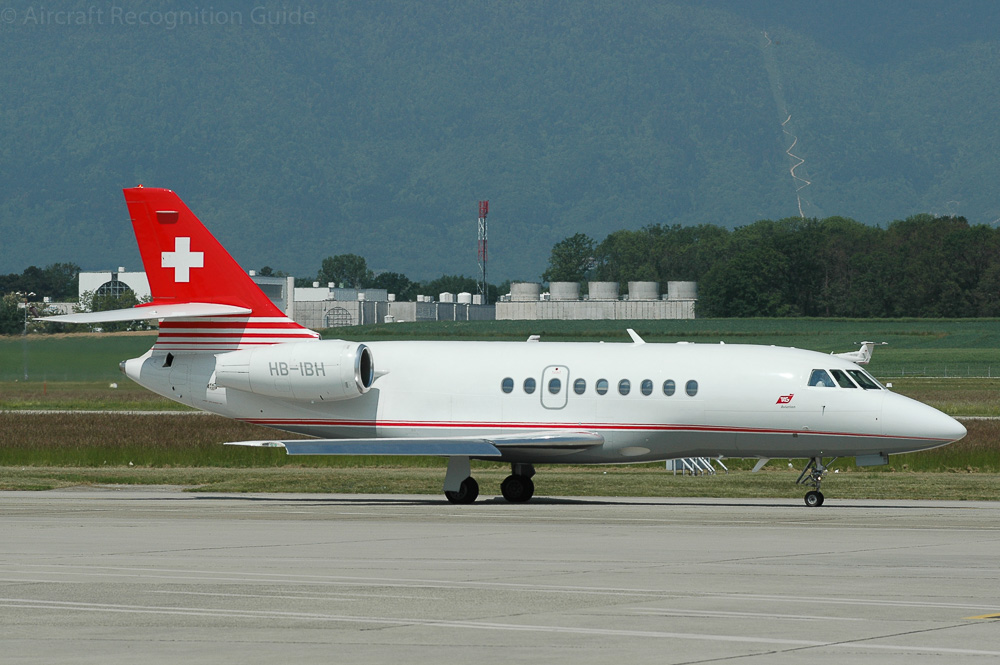

Differences IAI1126/G200 & Falcon 2000
The Falcon 2000 has roughly the same configuration and size as the Galaxy/G200, so you might confuse both. In the details, the aircraft types are significantly different. Compare for example the cockpit windows, the space between cabin windows, the back of engine nacelles, the tailcone and the horizontal stabiliser and you will find it easy to name the correct aircraft type.
Differences IAI1126/G200 & Cessna 680A

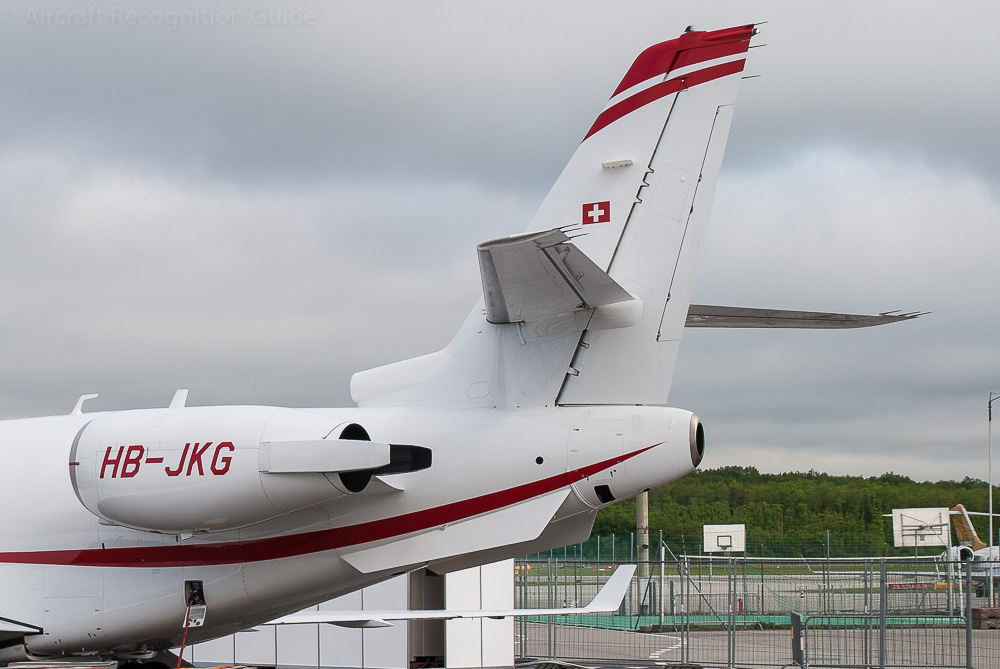

While bigger and wider the tail of the Citation Latitude is comparable in shape to the Gulfsteam G200. For the rest the aircraft types are sufficiently different to keep them apart easily.

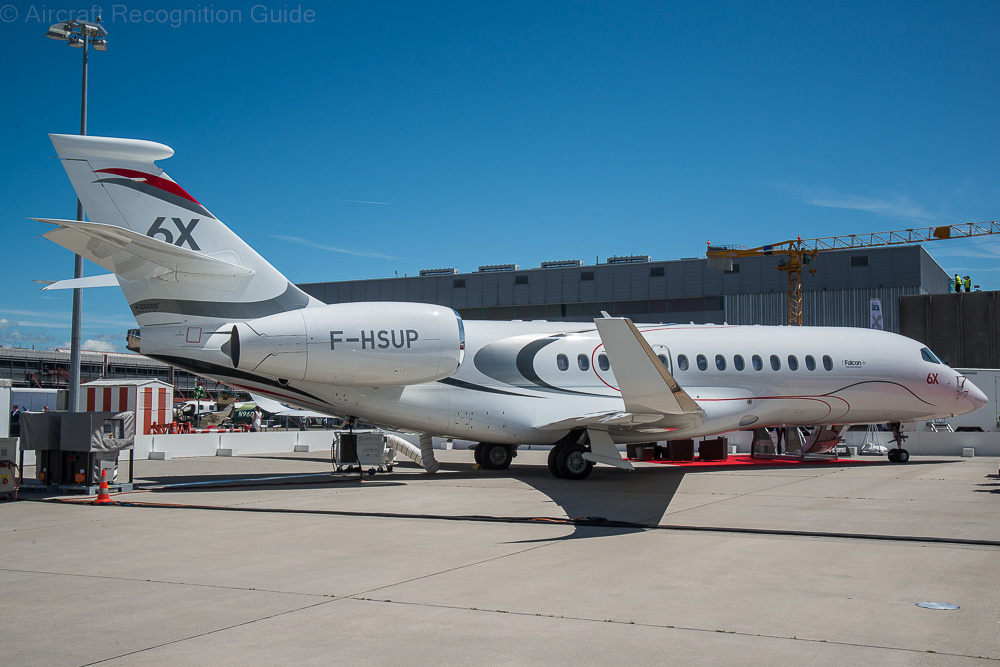

Differences IAI1126/G200 & Falcon 5X/6X
This aircraft also has a similar general configuration as the IAI1126/G200, but is significantly larger. The Falcon also has four curved cockpit windows, which taper towards the sides, and a slight dihedral on the horizontal stabilisers. However, the cabin windows of the Falcon 5X/6X are rounded rectangals, the nacelles have no external thrust reverser fairing at the back, a small curved dorsal fin and no ventral fins.
